Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

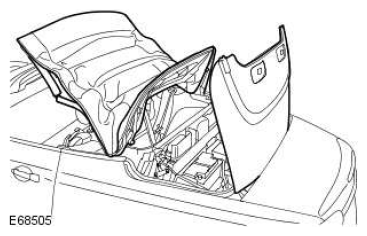

  1. G11524701

    Open the convertible top to the position shown.

    • Depress the switch.

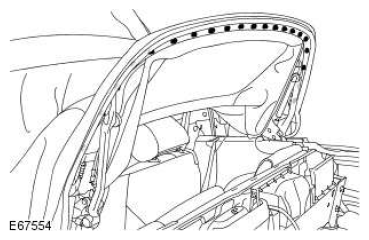

  2. G11524702

    Release the rear edge of the convertible top rear panel lower weatherstrip.

    • Remove the 21 Torx screws.
    • Remove the main carrier.

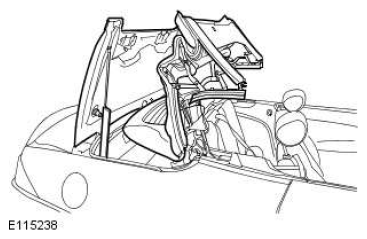

  3. G11524703

    Open the convertible top to the position shown.

    • Depress the switch.
  4. CAUTION:
    • Make sure that filings and swarf do not enter the component.
    • LH illustration shown, RH is similar.

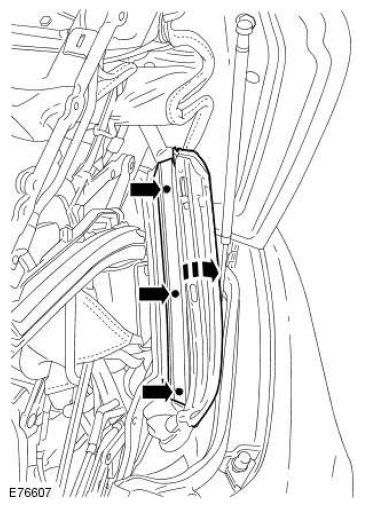

    G11524704

    Remove the convertible top rear panel lower weatherstrip C-post carriers.

    • Release the seal.
    • Drill out the 6 rivets.
  5. CAUTION: LH illustration shown, RH is similar.

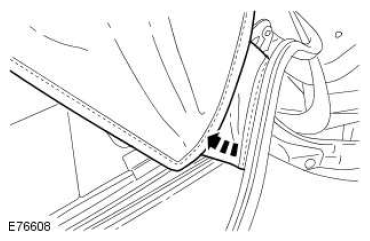

    G11524705

    Remove the convertible top rear panel lower weatherstrip.

    • Carefully release the convertible top rear panel lower weatherstrip from the outer material.
