Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cover and disconnect the battery ground cable.

    For additional information, refer to: Battery Disconnect And Connect

  2. Make the SRS system safe.

    For additional information, refer to: Inspection And Verification

  3. Remove the LH roll over protection unit.

    For additional information, refer to: Roll Over Protection Unit

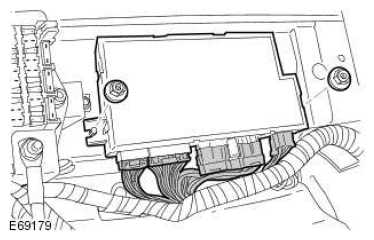

  4. G11524676

    Remove the convertible top module.

    • Disconnect the 4 electrical connectors.
    • Remove the 2 nuts.
