Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the convertible top headliner.

    For additional information, refer to: Convertible Top Headliner

    2. NOTE: Note the fitted position of the spacers

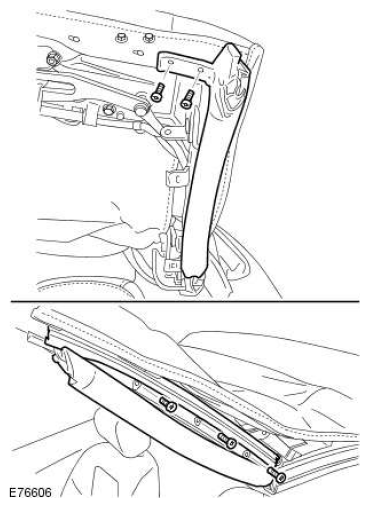

  2. G11524692

    Remove the convertible top front seal carriers.

    • Remove the 4 screws.
    • Release the seal.
    • Remove and discard the 6 Torx bolts.
    • Collect the spacers.

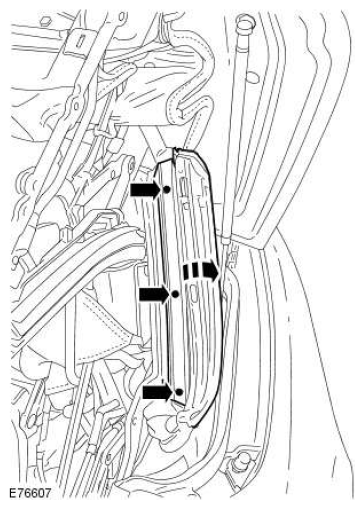

  3. G11524693

    Remove the convertible top side seal carriers.

    • Release the seal.
    • Drill out the 6 rivets.

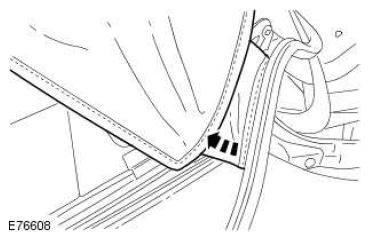

  4. G11524694

    Carefully release the convertible top outer material from the rear seal.

    5. NOTE: Note the routing of the convertible top tension cables.

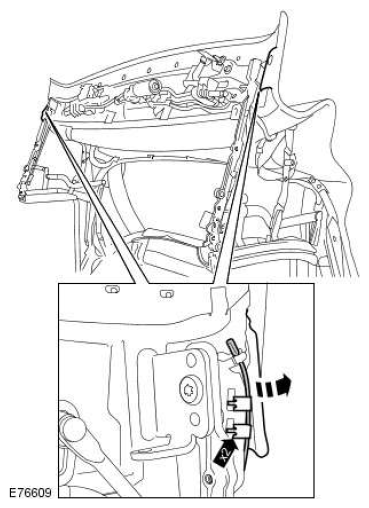

  5. G11524695

    Release the convertible top tension cables.

    • Remove and discard the 4 clips.
    • Release the tension cables from the convertible top frame.
    • Withdraw from the convertible top material.

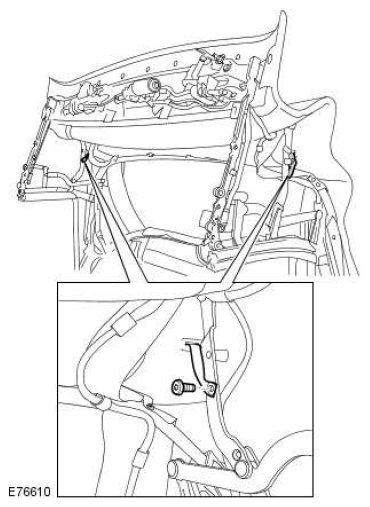

  6. G11524696

    Release the convertible top retaining straps.

    • Remove the 2 Torx bolts.

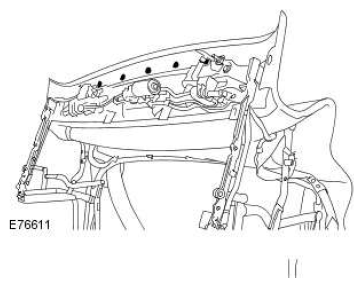

  7. G11524697

    Release the front edge of the convertible top material.

    • Remove the 5 Torx screws.

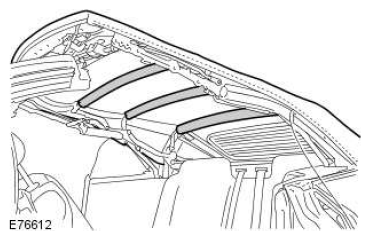

  8. G11524698

    Remove the convertible top outer material.

    • Release the convertible top material from the frame.
