Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

  1. Remove the header rail upper trim panel.

    For additional information, refer to: Header Rail Upper Trim Panel

  2. Release the convertible top locking mechanism rod.
    • Remove the retaining clip.
    3. NOTE: Electrical connector is installed on the LH latch only.

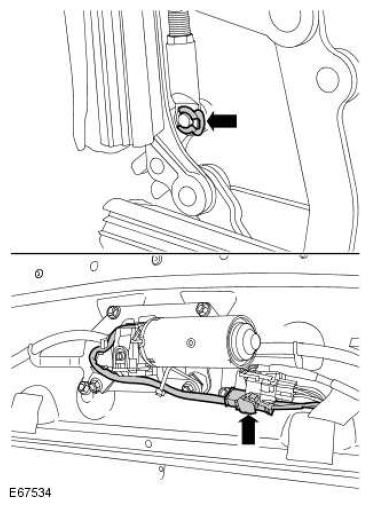

  3. G11524628

    Release the convertible top latch assembly.

    • Disconnect the electrical connector.

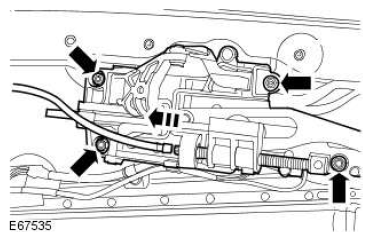

  4. G11524629

    Remove the convertible top latch assembly.

    • Remove the 4 nuts.
    • Release the drive cable.
