  1. Remove the header rail upper trim panel.

    For additional information, refer to: Header Rail Upper Trim Panel

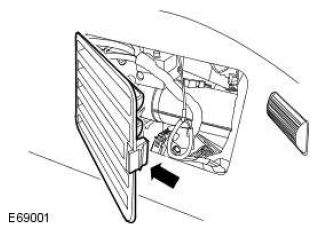

  2. G11524614

    Remove the convertible top hydraulic pump access panel

    • Release the clip.
    3. CAUTION: Do not loosen the Allen bolt more than 2 complete turns. Failure to follow this instruction may result in damage to the vehicle.
    NOTE: The ignition must be switched off.

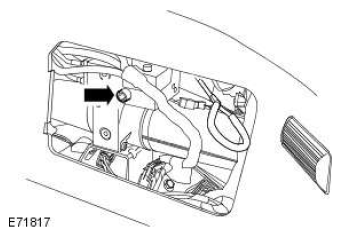

  3. G11524603

    Release the convertible top system pressure.

    • Loosen the Allen bolt up to a maximum of 2 complete turns.

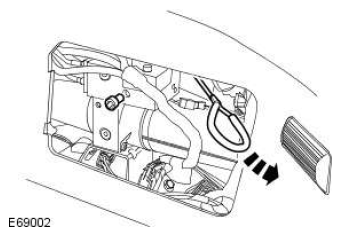

  4. G11524616

    Release the convertible top compartment lid.

    • Release using the cable.
    5. NOTE: Support as necessary.

  5. Open the convertible top to the position shown.

    • Raise the rear of the convertible top.

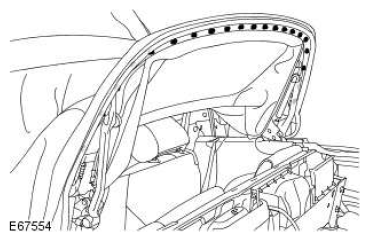

  6. G11524617

    Release the rear edge of the convertible top headliner.

    • Remove the 21 Torx screws.
    • Remove the securing bracket.

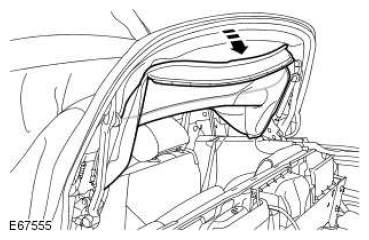

  7. G11524618

    Release the headliner from the rear window.

    • Release from the Velcro strip.

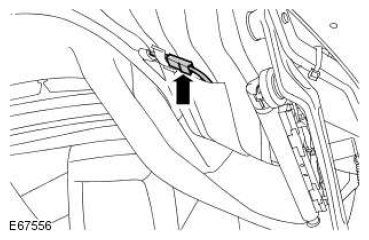

  8. G11524619

    Release the heated rear window wires from the headliner.

    • Disconnect both heated rear window electrical connectors.
    • Release the heated rear window wires from the headliner.

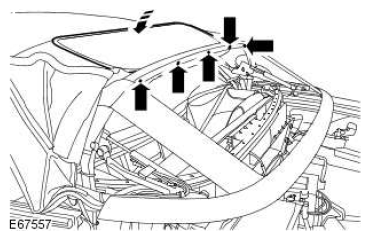

  9. G11524620

    Reposition the rear window

    • Fold over the rear window to allow access to the headliner retaining screws.
    10. NOTE:
    • Take note of the routing.
    • Note the fitted position.

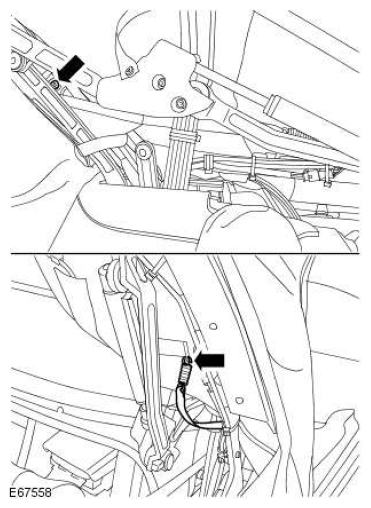

  10. G11524621

    Release the headliner rear tension straps.

    • Remove the 2 Torx bolts.
    • Release the 2 springs.

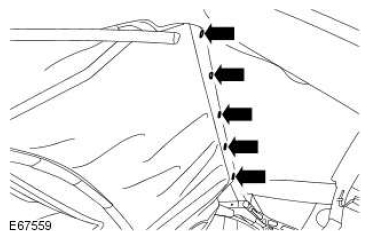

  11. G11524622

    Release the headliner from the rear of the convertible top frame.

    • Remove the 5 screws.
    12. NOTE: Note the fitted position.

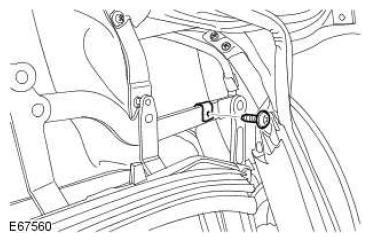

  12. G11524623

    Release the headliner central tension straps.

    • Remove the 2 Torx bolts.

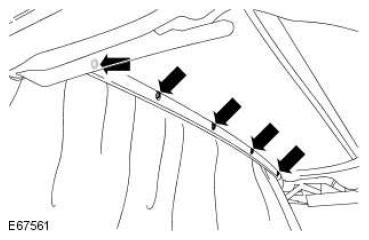

  13. G11524624

    Release the headliner from the center of the convertible top frame.

    • Remove the 5 screws.

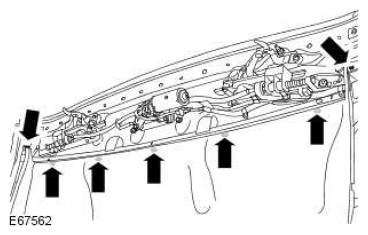

  14. G11524625

    Release the headliner from the front of the convertible top frame.

    • Remove the 5 screws.
    • Remove the 2 bolts.
    • Collect the retaining bracket.
  15. Remove the headliner.
