Removal And Installation: Installation

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Ensure grease from latching mechanisms does not contact the headliner.

Secure the headliner to the front of the convertible top frame.
- Position the retaining bracket.
- Install and tighten the screws.
- Tighten the bolts to 10 Nm.
Secure the headliner to the center of the convertible top frame.
- Remove the 5 screws.
- Install and tighten the screws.

NOTE: Note the fitted position.

Attach the headliner central tension straps.
- Tighten the Torx bolts to 4 Nm.
Secure the headliner to the rear of the convertible top frame.
- Install and tighten the screws.
NOTE:
- Take note of the routing.
- Note the fitted position.
Attach the headliner rear tension straps.
- Tighten the Torx bolts to 4 Nm.
- Attach the springs.
Reposition the rear window
- Fold over the rear window to allow access to the headliner retaining screws.
- Fold the rear window into fitted position.
Secure the heated rear window wires to the headliner.
- Attach the heated rear window wires to the headliner.
- Connect the electrical connectors.
Secure the rear edge of the convertible top headliner.
- Position the securing bracket.
- Install and tighten the Torx screws.

NOTE: Support as necessary.

Close the convertible top compartment lid.
- Raise the rear of the convertible top.
Install the header rail upper trim panel.
For additional information, refer to: Header Rail Upper Trim Panel

NOTE: The ignition must be switched off.

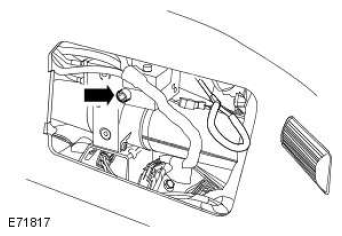

Tighten the convertible top system pressure Allen bolt.
- Tighten to 2 Nm.
Install the convertible top hydraulic pump access panel
- Secure in the clip.
Operate the convertible top fully in each direction.

Depress the switch.
