Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

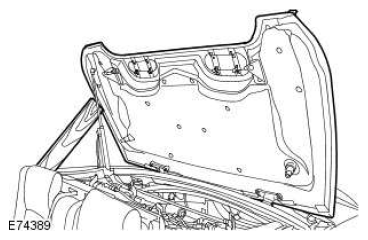

  1. G11524685

    Open the convertible top to the position shown.

    • Depress the switch.
    • Support as necessary.

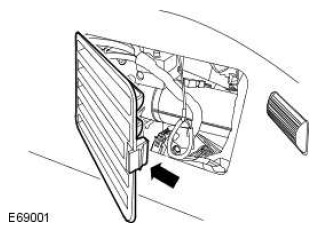

  2. G11524686

    Remove the convertible top hydraulic pump access panel

    • Release the clip.
    3. CAUTION: Do not loosen the Allen bolt more than 2 complete turns. Failure to follow this instruction may result in damage to the vehicle.
    NOTE: The ignition must be switched off.

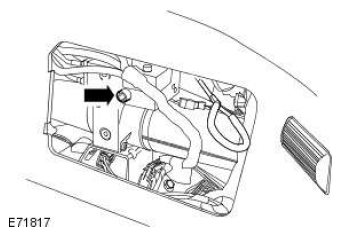

  3. G11524687

    Release the convertible top system pressure.

    • Loosen the Allen bolt up to a maximum of 2 complete turns.

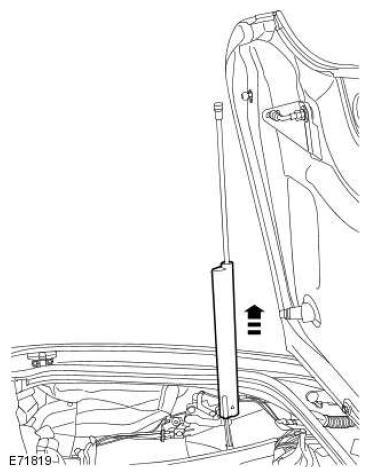

  4. G11524688

    Remove the convertible top compartment lid lift cylinder cover.

    • Release the clip.
    • Release the lift cylinder

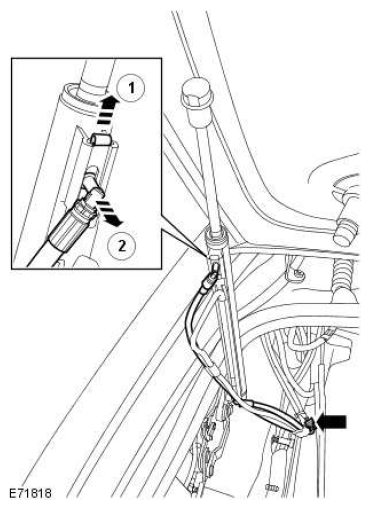

  5. G11524689

    Release the convertible top compartment lid lift cylinder.

    • Disconnect the 2 fluid lines.
    • Disconnect the electrical connector.

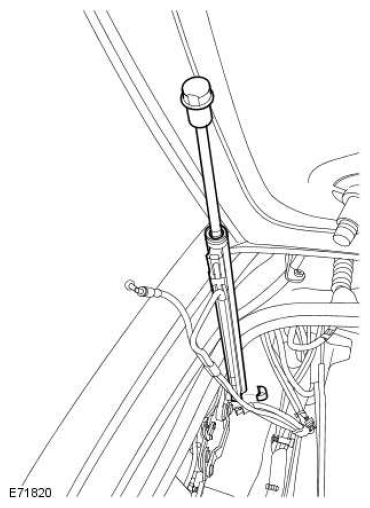

  6. G11524690

    Remove the convertible top compartment lid lift cylinder.

    • Release the clip.
