Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Support as necessary.

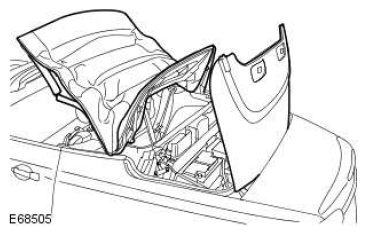

  1. G11524664

    Open the convertible top to the position shown.

    • Depress the switch.
  2. Remove the cover and disconnect the battery ground cable. For additional information, refer to: Battery Disconnect And Connect
  3. Remove the RH loadspace trim panel.

    For additional information, refer to: Loadspace Trim Panel - Convertible

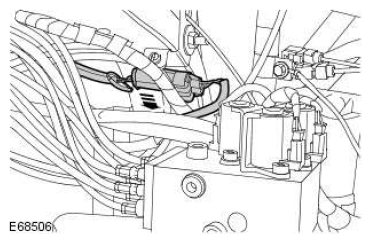

  4. G11524665

    Release the convertible top electrical connector

    • Release from the clip.
    • Disconnect the electrical connector.

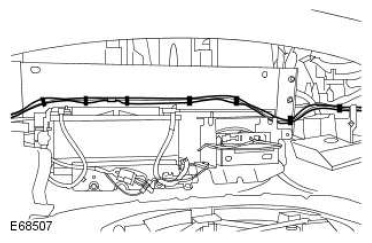

  5. G11524666

    Release the convertible top lid latch and cable assembly.

    • Release the cables from the 7 clips.

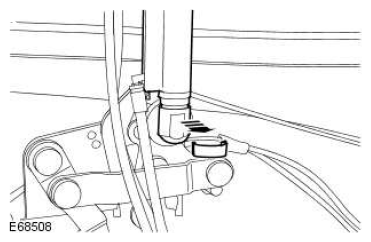

  6. G11524667

    Release the convertible top lid lift cylinder.

    • Release the clip.

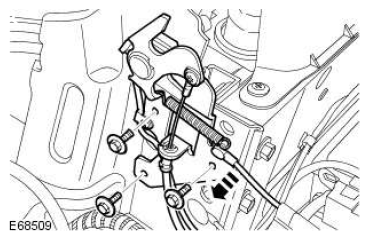

  7. G11524668

    Release the LH convertible top lid latch.

    • Remove the 3 bolts.

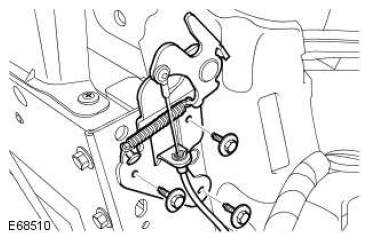

  8. G11524669

    Release the convertible top lid RH latch.

    • Remove the 3 bolts.

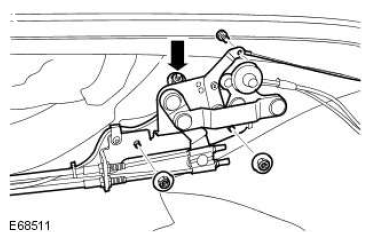

  9. G11524670

    Remove the convertible top lid latch and cable assembly.

    • Remove the 2 lower nuts.
    • Loosen the upper retaining nut.
    • Release the emergency release cable.
