Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Support as necessary.

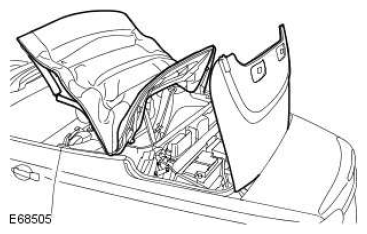

  1. G11524651

    Open the convertible top to the position shown.

    • Depress the switch.
  2. Release the luggage compartment retractable cover rail upper tension strap.

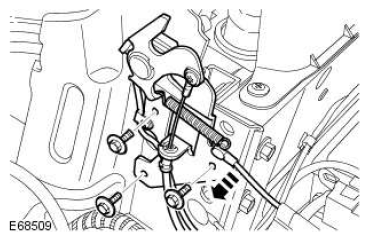

  3. G11524652

    Release the convertible top lid latch.

    • Remove the 3 bolts.

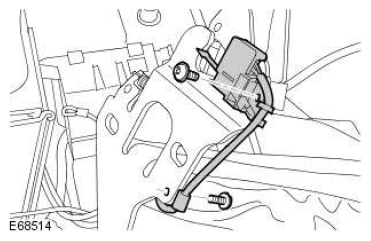

  4. G11524653

    Release the convertible top lid position switch

    • Remove the 2 Torx bolts.
    • Release the switch.

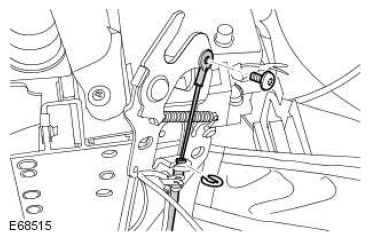

  5. G11524654

    Release the convertible top latch release cable.

    • Remove the Torx bolt.
    • Carefully release the clip.
