General Procedures

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check the alignment of the convertible top lid. Adjust, if required, using the steps below.
    2. NOTE: Support as necessary.

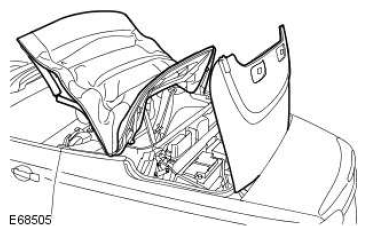

  2. G11524387

    Open the convertible top to the position shown.

    • Depress the switch.
    3. NOTE: LH illustration shown, RH is similar.

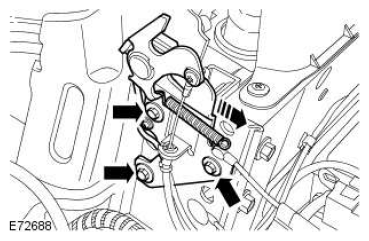

  3. G11524589

    Release the convertible top lid latches.

    • Loosen the 6 bolts.
    • Tighten the 6 bolts to 1 Nm (1 lb.ft).

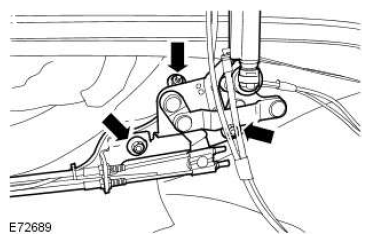

  4. G11524590

    Release the convertible top lid lift cylinder bracket.

    • Loosen the 3 nuts.
    • Push the convertible top lift cylinder bracket fully rearwards.
    • Tighten the 3 nuts to 1 Nm (1 lb.ft).
  5. Close the convertible top compartment lid.
    • Depress the switch.
  6. With the convertible top compartment lid closed, check the alignment of the lid to the body. The lid should be central in its aperture. The profile of the lid to the body should be flush.
  7. Install the convertible lid cylinder bracket lower nuts.
    • Tighten the nuts to 10 Nm (7 lb.ft).
    8. NOTE: Support as necessary.
  8. G11524591

    Open the convertible top to the position shown.

    • Depress the switch.
  9. Secure the convertible top lid latches.
    • Tighten the bolts to 10 Nm (7 lb.ft).
  10. Install the convertible lid cylinder bracket upper nut.
    • Tighten the nut to 10 Nm (7 lb.ft).
  11. Close the convertible top compartment lid.
