Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

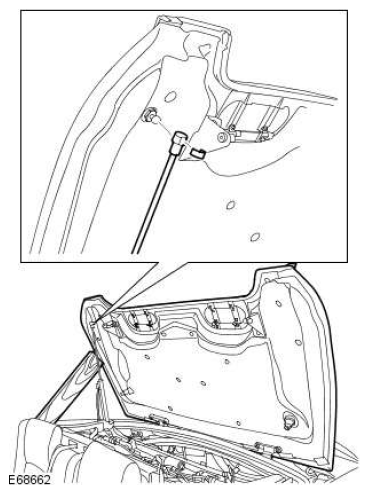

  1. G11524633

    Open the convertible top to the position shown.

    • Depress the switch.
    • Support as necessary.
  2. Release the convertible top compartment lid lift cylinder.
    • Release the clip.

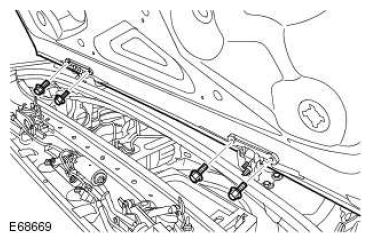

  3. G11524634

    With assistance, remove the convertible top compartment lid.

    • Remove the 4 bolts.

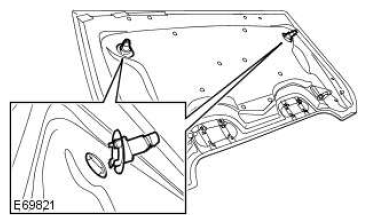

  4. G11524635

    Remove the convertible top compartment lid buffers.

    • Release the clips.

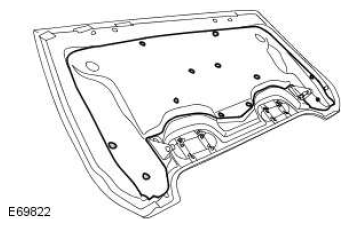

  5. G11524636

    Remove the convertible top compartment lid pad.

    • Remove the 11 clips.

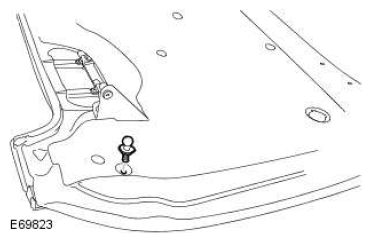

  6. G11524637

    Remove the convertible top compartment lid lift cylinder spigot.

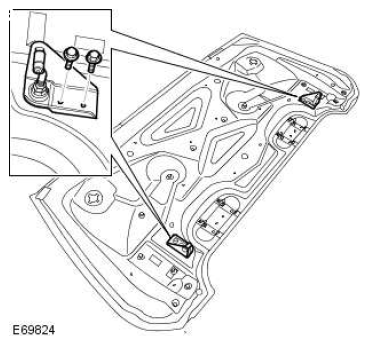

  7. G11524638

    Remove the convertible top compartment lid strikers.

    • Remove the 4 bolts.

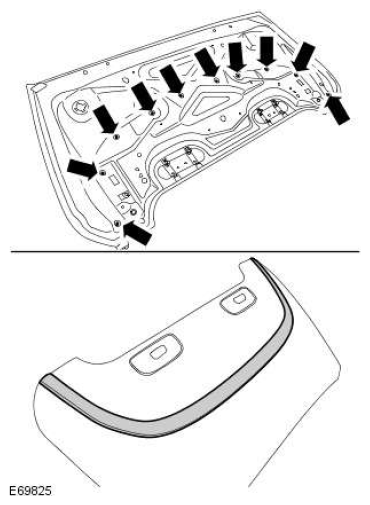

  8. G11524639

    Remove the convertible top compartment moulding.

    • Remove the 10 nuts.

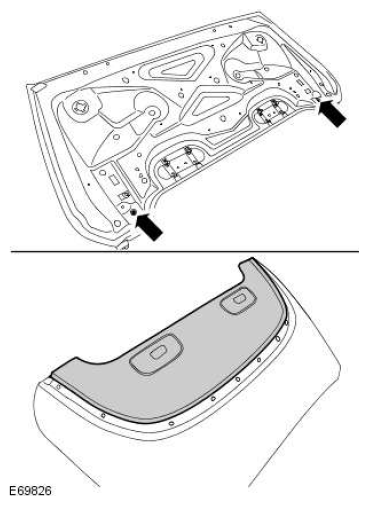

  9. G11524640

    Remove the convertible top compartment trim panel.

    • Remove the 2 Torx bolts.
    • Release from the 8 clips.
