Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear quarter trim panels.
For additional information, refer to: Rear Quarter Trim Panel - Convertible
Remove the RH loadspace trim panel.
For additional information, refer to: Loadspace Trim Panel - Convertible

CAUTION: Do not loosen the Allen bolt more than 2 complete turns. Failure to follow this instruction may result in damage to the vehicle.

NOTE: The ignition must be switched off.

Release the convertible top system pressure.
- Loosen the Allen bolt up to a maximum of 2 complete turns.
Disconnect the convertible top hydraulic pump electrical connectors.

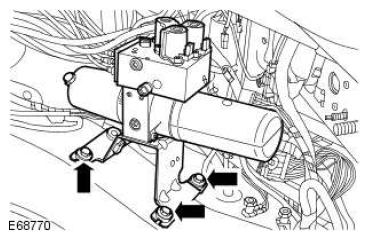

Release the convertible top hydraulic pump.
- Remove the 3 bolts.
Close the convertible top to the position shown.

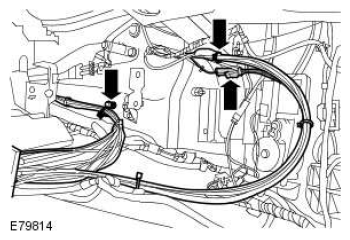

Release the convertible top fluid lines and harness.
- Disconnect the electrical connector.
- Release the 2 fluid line and harness clips.
NOTE: Support the convertible top compartment lid.

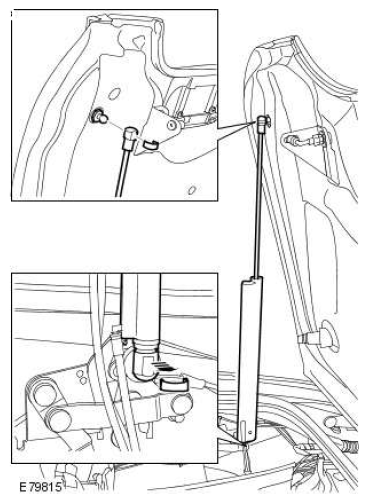

Release the convertible top compartment lid RH lift cylinder.
- Release the 2 clips.
Open the convertible top to the position shown.

CAUTION: Under no circumstances must the base plate fixing nuts be loosened or removed. Each base plate fixing nut can be identified by a large aluminium spacer.

NOTE: This step requires the aid of other technicians.

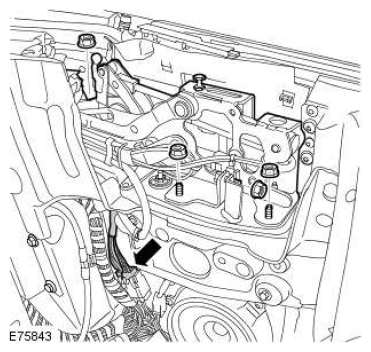

Remove the convertible top assembly.
- Disconnect the 2 electrical connectors.
- Remove the 8 nuts.
