Removal And Installation: Installation

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

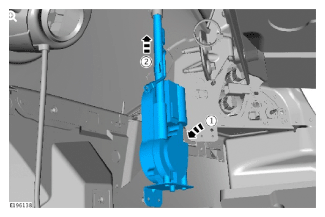

  1. G11516446
    • Install the Antenna.

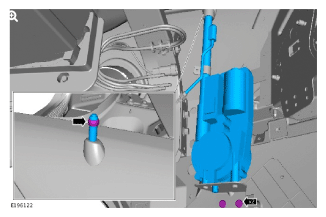

  2. G11516444
    1. Install the nut on the top of the Antenna.
    2. Install the 2 bolts to the Antenna mounting bracket.

      Torque specification: 10 Nm

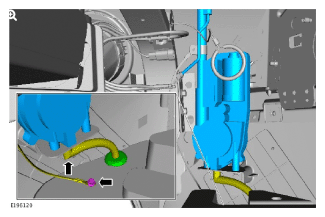

  3. G11516443
    • Install the drain tube.
    • Install the bolt to the earth strap.

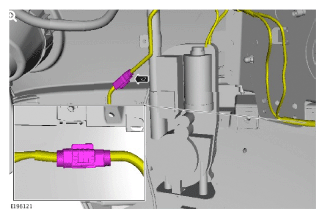

  4. G11516449

    Connect the wiring harness electrical connectors.

  5. NOTE: If equipped.

    Install the Hydraulic Pump Assembly.

    For additional information, refer to: Convertible Top Motor (Convertible Top, Removal and Installation).

  6. Install the RH rear quarter trim panel.

    For additional information, refer to: Rear Quarter Trim Panel - 2-Door (Interior Trim and Ornamentation, Removal and Installation).

  7. Connect the battery ground cable.

    For additional information, refer to: BATTERY DISCONNECT AND CONNECT (Battery, Mounting and Cables, General Procedures).
