Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable.
For additional information, Refer To: BATTERY, MOUNTING AND CABLES (Specifications).

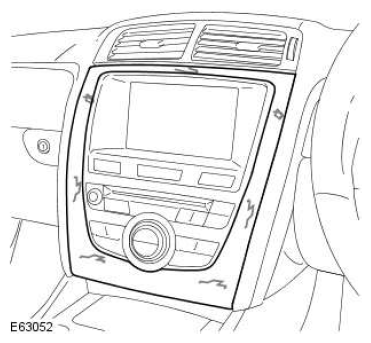

Remove the instrument panel center reinforcement trim panel.

Release from the 5 clips.

CAUTION: Protect the surrounding trim from damage when changing the component.

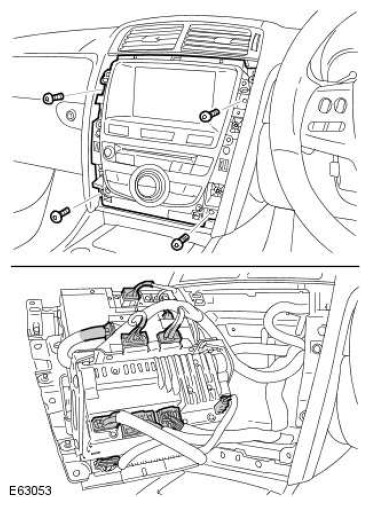

Release the navigation system module bracket.

Remove the 4 Torx screws.
Disconnect the 10 electrical connectors.
Release the assembly.

NOTE: Do not disassemble further if the component is removed for access only.

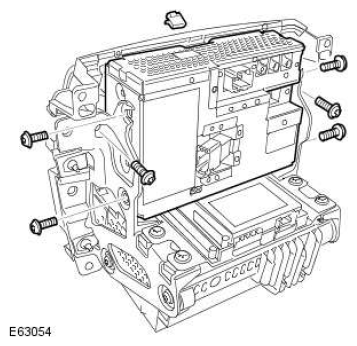

Remove the navigation screen module.

Remove the trim panel veneer upper retaining clip.
Remove the 2 Torx screws.
Remove the 4 Torx bolts.
