Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear spoiler.

    For additional information, refer to: Rear Spoiler (Removal and Installation).

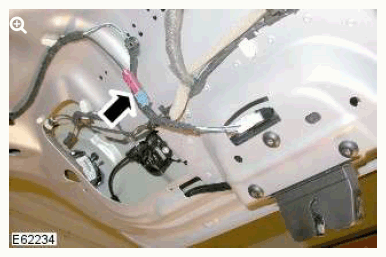

  2. G11523955

    Disconnect the electrical connector.

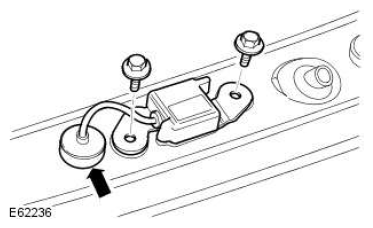

  3. G11523956

    Remove the navigation system antenna.

    • Remove the 2 bolts.
