Information And Entertainment Control Panel

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

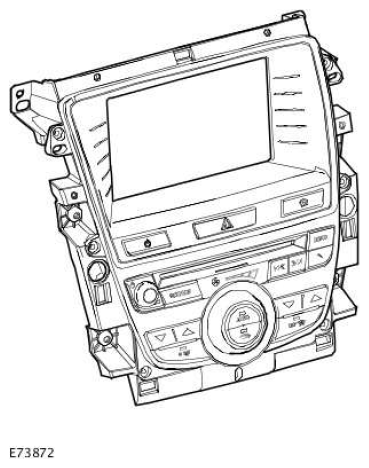

G11523952

The Information and Entertainment Control Panel is connected to the MS CAN bus. The ICP incorporates switches for audio system control, climate control, hazard warning lamps and the navigation system. The navigation system is operated from the TSD via signals on the MOST ring. Hard switches on the ICP send CAN signals to the ICM which transfers signals to the relevant module on the MOST ring.
