Information And Entertainment Control Module

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

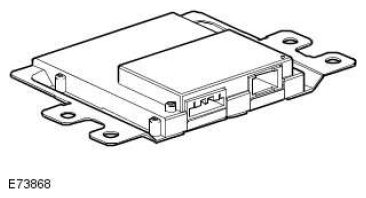

G11523951

The Information and Entertainment Control Module (ICM) is located between the TSD and the IAM. The ICM is mounted in the vehicle using four M6 bolts.

The ICM is the gateway between the vehicle MS CAN bus and the Information and Entertainment system MOST bus.
