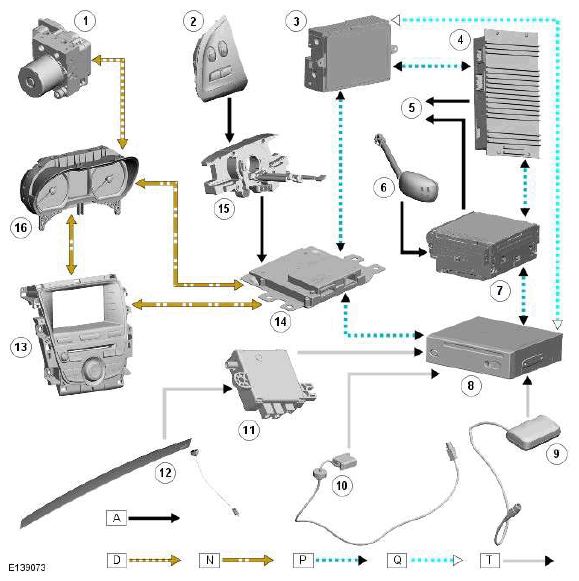

Control Diagram
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A = Hardwired; D = High speed CAN bus; N = Medium speed CAN; P = MOST ring; Q = GVIF; T = Coaxial
| ITEM | DESCRIPTION |
|---|---|
| 1 | ABS control module |
| 2 | Steering wheel controls |
| 3 | Touch Screen Display (TSD) |
| 4 | Audio amplifier |
| 5 | Speakers |
| 6 | Microphone |
| 7 | Integrated Audio Module |
| 8 | Navigation computer |
| 9 | Vehicle Information and Communication Systems (VICS) beacon antenna (Japan only) |
| 10 | GPS Antenna |
| 11 | AM/FM antenna splitter |
