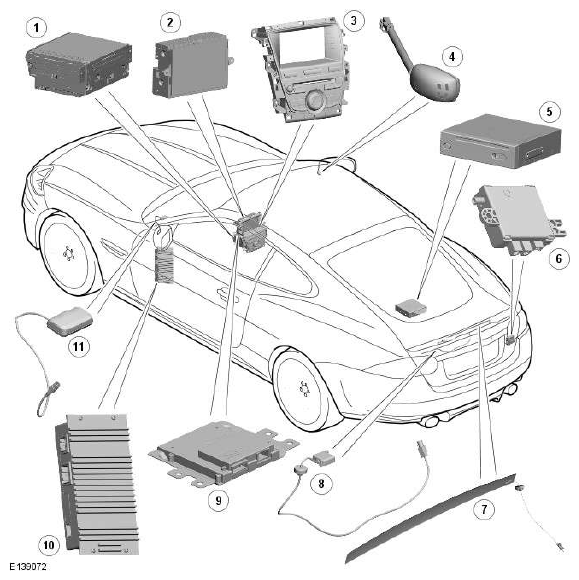

Component Location
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Integrated Audio Module |
| 2 | Touch Screen Display |
| 3 | Integrated Control Panel |
| 4 | Microphone |
| 5 | Navigation computer |
| 6 | FM antenna signal splitter |
| 7 | AM/FM antenna |
| 8 | GPS antenna |
| 9 | Information and entertainment control module |
| 10 | Audio amplifier |
| 11 | Vehicle Information and Communication Systems (VICS) beacon antenna (Japan only) |
