Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

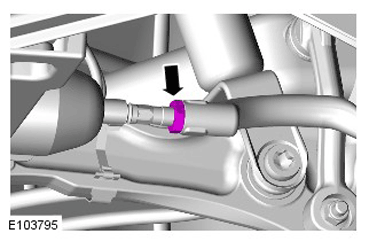

  2. NOTE: RHD illustration shown, LHD is similar.
    G11284678

    Torque Specification  : 55 Nm

  3. CAUTION: This step is to allow correct tool alignment to the tie rod end.

    Refer to: BRAKE PADS - VEHICLES WITH: STANDARD BRAKES (Removal and Installation).

    Refer to: BRAKE PADS - VEHICLES WITH: HIGH PERFORMANCE BRAKES (Removal and Installation).

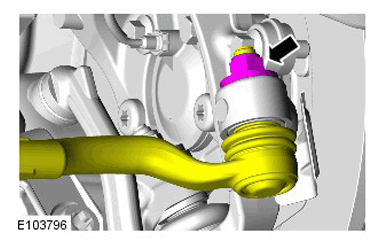

  4. CAUTION: Make sure that the ball joint ball does not rotate.
    NOTE: RHD illustration shown, LHD is similar.
    G11283802

    Torque Specification  : 133 Nm

  5. CAUTION: Make sure that these components are installed to the noted removal position.
    NOTE: RHD illustration shown, LHD is similar.
    G11512345
