Tie Rod Checks 1: Check For Bending Or Deflection Of Tie-Rod Shafts
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
Visually inspect the ends of the tie-rod shafts

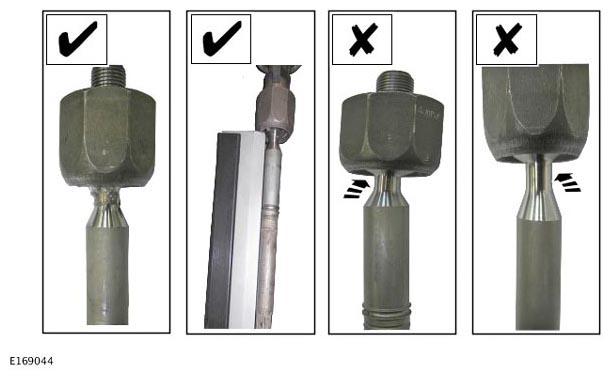

The tie-rod shafts should show no signs of bending or deflection anywhere along the length of the entire shaft (as in the two left-hand pictures above).
If there is evidence of bending or deflection anywhere along the length of the entire shaft the tie-rod should be replaced (the two right-hand pictures above show examples of shafts bent in the ball-joint area). If evidence of bending or deflection is noted, then the steering gear should be checked thoroughly for other symptoms that may have been induced by the impact (e.g.: Noisy or heavy steering). If further damage is noted, it may be necessary to replace the steering gear as part of the accident damage/abuse repair
