Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: This module is installed on the inside of the RH A-pillar above the footwell and does not change with the hand of drive.
  1. Remove the cover and disconnect the battery ground cable.

    For additional information, refer to: Battery Disconnect And Connect

    2. CAUTION: Removal of the clips is a delicate procedure, damage will occur if any force is used.
  2. G11523983

    Remove the RH side footwell trim panel.

    • Remove the 3 clips.

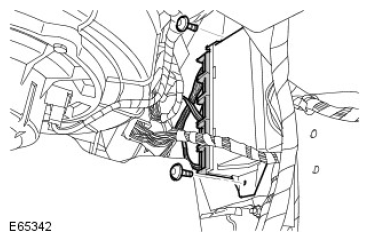

  3. G11523984

    Remove the keyless entry module.

    • Remove the 2 Torx screws.
    • Disconnect the 5 electrical connectors.
