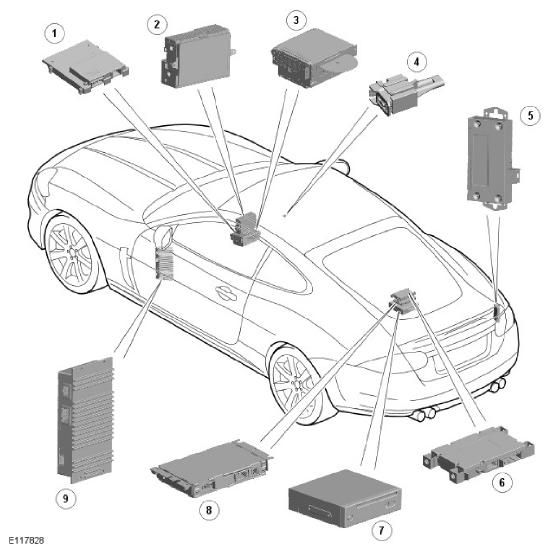

Component Location - Most Bus
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Information and entertainment module |
| 2 | TSD (touch screen display) |
| 3 | Integrated audio module |
| 4 | Software download socket |
| 5 | Auxiliary USB (universal serial bus) unit |
| 6 | Cellular phone module |
| 7 | Navigation computer |
| 8 | SDARS/DAB (satellite digital audio radio service/digital audio broadcasting) module (where fitted) |
| 9 | Audio amplifier |
