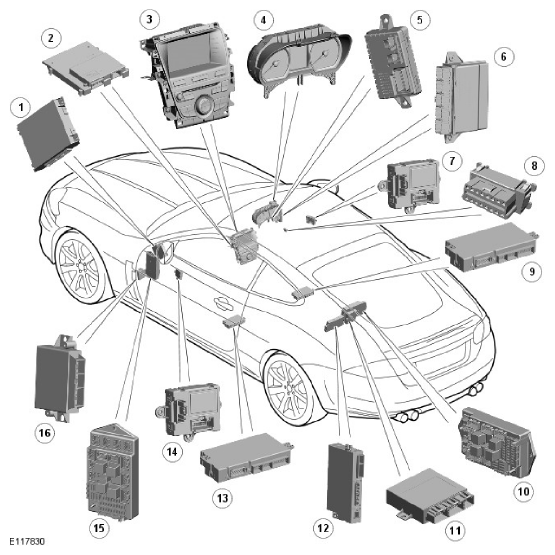

Component Location - Medium Speed Can Bus
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | ATC module |
| 2 | Information and entertainment module |
| 3 | Integrated control panel |
| 4 | Instrument cluster |
| 5 | Seat climate control module |
| 6 | Keyless vehicle module |
| 7 | Driver door module |
| 8 | Diagnostic socket |
| 9 | Driver seat module |
| 10 | AJB (auxiliary junction box) |
| 11 | TPMS (tire pressure monitoring system) module |
| 12 | Convertible top control module (convertible vehicle only) |
| 13 | Passenger seat module |
| 14 | Passenger door module |
| 15 | CJB |
| 16 | Parking aid module |
