Component Location - Lin And Private Can Buses (2 Of 2)

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

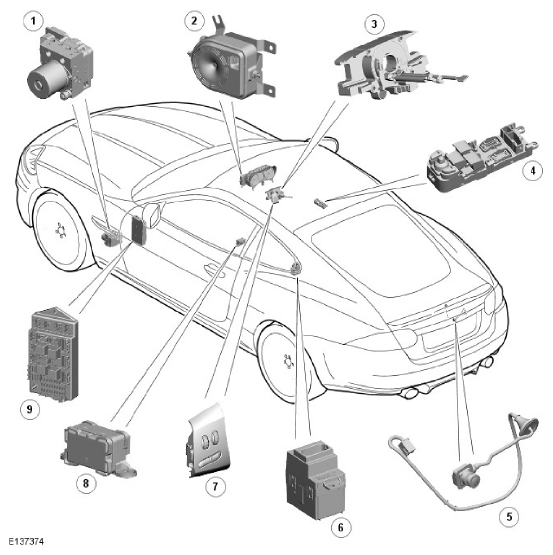

G11523972
ITEM DESCRIPTION
1 ABS (anti-lock brake system) module
2 Battery backed sounder
3 Clockspring
4 Driver door switch pack
5 Parking aid camera
6 Engine start control module
7 Steering wheel audio switch module
8 Yaw rate/acceleration sensor
9 CJB (central junction box)
