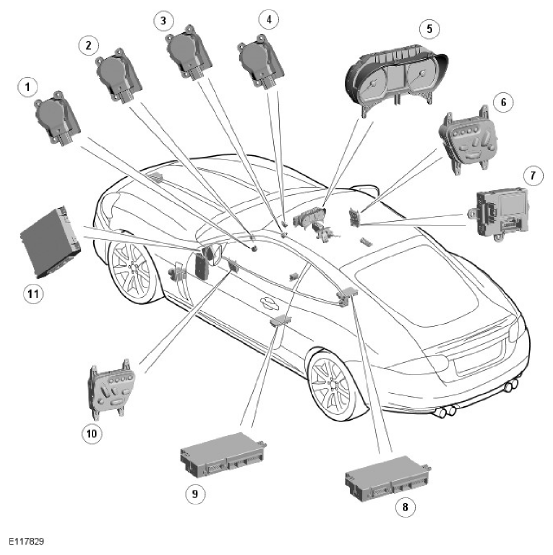

Component Location - Lin And Private Can Buses (1 Of 2)
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | LH (left hand) temperature blend stepper motor |
| 2 | Face/Feet distribution stepper motor |
| 3 | RH (right hand) temperature blend stepper motor |
| 4 | Windshield distribution (defrost) stepper motor |
| 5 | Instrument cluster |
| 6 | Driver seat switch pack |
| 7 | Driver door module |
| 8 | Driver seat module |
| 9 | Passenger seat module |
| 10 | Passenger seat switch pack |
| 11 | ATC (automatic temperature control) module |
