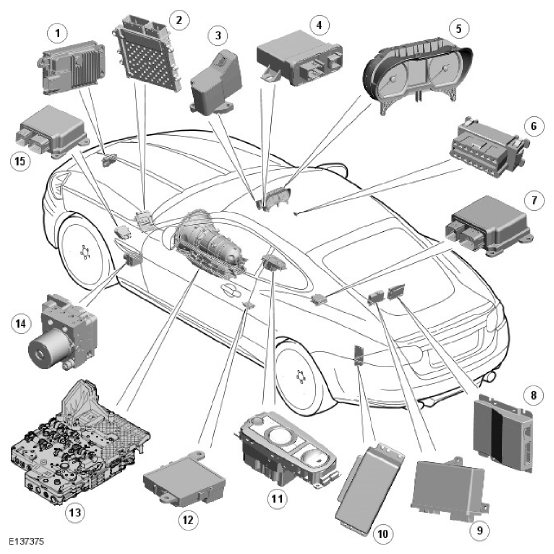

Component Location - High Speed Can Bus
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Adaptive speed control module |
| 2 | ECM (engine control module) |
| 3 | Steering column lock |
| 4 | Headlamp leveling/AFS (adaptive front lighting system) control module |
| 5 | Instrument cluster |
| 6 | Diagnostic socket |
| 7 | RCM (restraints control module) |
| 8 | ADCM (active damping control module) |
| 9 | EPB (electric park brake) module |
| 10 | DLM (differential locking module) |
| 11 | JaguarDrive selector module |
| 12 | Occupancy sensor module |
| 13 | TCM (transmission control module) |
| 14 | ABS module |
| 15 | Pedestrian protection system module |
