Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable.

    For additional information, refer to: Battery Disconnect And Connect

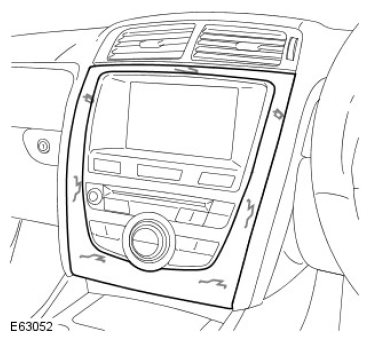

  2. G11523979

    Remove the instrument panel center reinforcement trim panel.

    • Release from the 5 clips.
    3. CAUTION: Protect the surrounding trim from damage when changing the component.

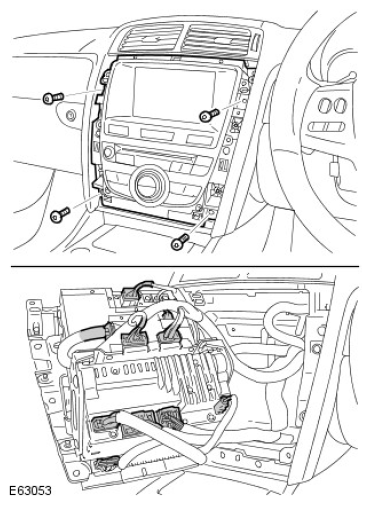

  3. G11523980

    Release the navigation system module bracket.

    • Remove the 4 Torx screws.
    • Release the assembly.

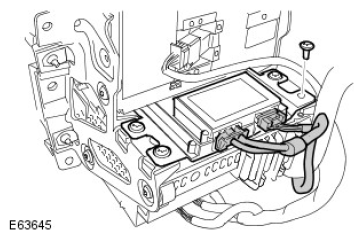

  4. G11523981

    Remove the information and entertainment module.

    • Remove the 4 Torx bolts.
    • Disconnect the 2 electrical connectors.
