Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat.

    For additional information, refer to: Front Seat Removal And Installation

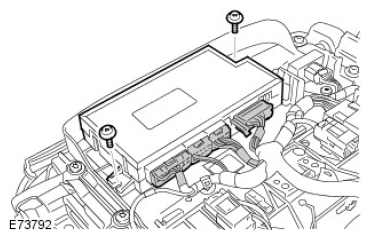

  2. G11523977

    Remove the front seat control module.

    • Disconnect the 4 electrical connectors.
    • Remove the 2 Torx bolts.
