Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel assembly. For additional information, refer to: Instrument Panel
  2. See Figure
    G11516381

    Remove the heater duct.

    • Remove the 2 Torx screws.
    • Release the lampholder.
    3. CAUTION: Make sure the wiring harness and electrical connectors are not damaged during the carpet release.
  3. Carefully release the carpet for access.
  4. See Figure
    G11516382

    Remove the subwoofer cover.

    • Remove the 4 bolts.
    5. NOTE: Do not disassemble further if the component is removed for access only.
  5. G11516472

    Remove the subwoofer.

    • Remove the 4 screws.
    • Disconnect the 2 electrical connectors.
  6. See Figure
    G00566804

    Remove the amplifier.

    • Remove the 4 Torx screws.
  7. See Figure

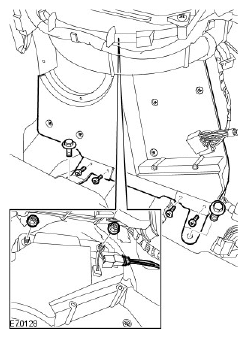

    G11516474

    Release the subwoofer speaker housing

    • Remove the 2 nuts.
    • Remove the 2 bolts.
    • Remove both speaker housing support brackets.
    8. CAUTION: Cover fibre optic cable connectors to minimise dust ingress and avoid bending the cables in a radius of less than 30 mm. Remove the subwoofer speaker housing.

  8. Remove the subwoofer speaker housing.

    • Carefully disconnect the MOST connector.
    • Disconnect the 3 electrical connectors.
