General Procedures: Disconnect

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
    WARNING:
    • Place the vehicle in a quarantined area and arrange "No Smoking/Petrol Fumes" signs about the vehicle.
    • Before any work is carried out on the fuel system, ground the vehicle to earth and maintain the ground connection until the work is complete.
    • Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel related components. Highly flammable vapors are always present and may ignite. Failure to follow these instructions may result in personal injury.
    • Do not carry or operate cellular phones when working on or near any fuel related components. Highly flammable vapors are always present and may ignite. Failure to follow these instructions may result in personal injury.
    • The fuel system remains pressurized for a long time after the ignition is switched off. The fuel pressure must be relieved before attempting any repairs. Failure to follow these instructions may result in personal injury.
    • After carrying out repairs, the fuel system must be checked visually for leaks. Failure to follow these instructions may result in personal injury.
    • This procedure involves fuel handling. Be prepared for fuel spillage at all times and always observe fuel handling precautions. Failure to follow these instructions may result in personal injury.
    • If taken internally do not induce vomiting, seek immediate medical attention. Failure to follow these instructions may result in personal injury.
    • If fuel contacts the eyes, flush the eyes with cold water or eyewash solution and seek medical attention.
    • Wash hands thoroughly after handling, as prolonged contact may cause irritation. Should irritation develop, seek medical attention.

  1. Relieve the fuel system pressure.

    For additional information, refer to: fuel System Pressure Release - V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol  or Fuel System Pressure Release - V8 N/A 4.2L Petrol/V8 S/C 4.2L Petrol

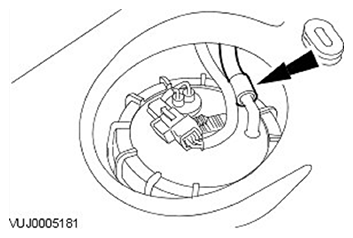

  2. G11545053

    Disconnect the push connect fitting.

    • Press the collar.
    • Disconnect the push connect fitting.
