General Procedures: Connect

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

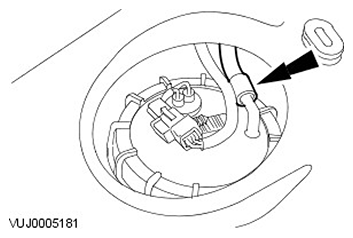

  1. G11545054

    To connect.

    • Support the male stub.
    • Push the connector fitting onto the stub until an audible click can be heard.
    • Check the connection by a gentle tug test.
