Special Tool(S)

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
G11545047
 310-154
Fuel drain adaptor
WARNING:
  • Place the vehicle in a well ventilated, quarantined area and arrange ' No Smoking/Petrol Fumes' signs about the vehicle.
  • Do not carry or operate cellular phones when working on or near any fuel related components. Highly flammable vapors are always present and may ignite. Failure to follow these instructions may result in personal injury.
  • Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel related components. Highly flammable vapors are always present and may ignite. Failure to follow these instructions may result in personal injury.
  • The spilling of fuel is unavoidable during this operation. Ensure that all necessary precautions are taken to prevent fire and explosion.
CAUTION: Before disconnecting or removing components, ensure the area around the joint faces and connections are clean. Plug open connections to prevent contamination.
  1. Remove the cover and disconnect the battery ground cable. For additional information, refer to: Battery Disconnect And Connect Specifications (414-00, Specifications).
  2. Remove the rear RH seat cushion cover.
    • Release the 2 clips.

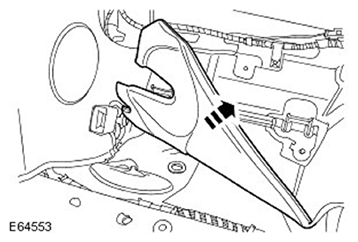

  3. G11545048

    Position the underseat sound deadner, to gain access to the fuel tank grommet.

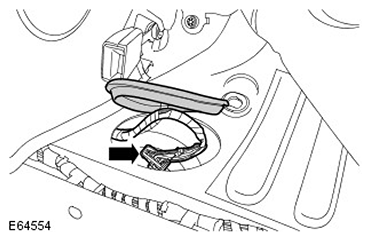

  4. G11545049

    Remove the rubber grommet.

    • Disconnect the electrical connector.

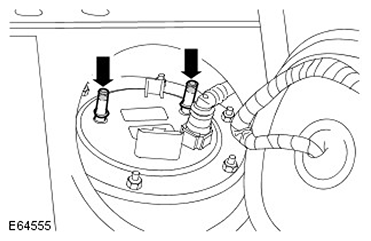

  5. G11545050

    Cut the sealing plug from the top of the 2 drain ports.

    • Disconnect the electrical connector.
  6. Connect the fuel tank drain equipment ground cable to the vehicle.
  7. Remove the fuel from the tank, via the 2 drain ports, to drain the left and right sides of the fuel tank.
  8. Remove the fuel drain equipment.
    9. WARNING: After the fuel tank drain is complete always fit the sealing covers over the drain ports. Failure to do so will mean that fuel vapor can escape.

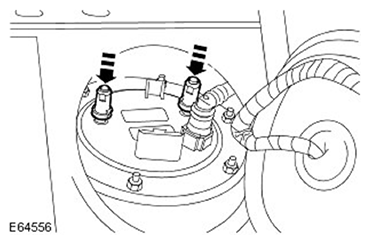

  9. G11545051

    Install the drain port sealing covers.

  10. Install the grommet.
    • Connect and secure the electrical connector.
  11. Position the sound deadner.
  12. Install the RH rear seat cushion.
    • Carefully secure the clips.
  13. Refill the fuel tank.
  14. Connect the battery ground cable and install the cover.

    For additional information, refer to: Battery Disconnect And Connect Specifications (414-00, Specifications).
