Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cover and disconnect the battery ground cable.

    For additional information, refer to: Battery Disconnect And Connect

  2. Remove the front door trim panel.

    For additional information, refer to: Front Door Trim Panel

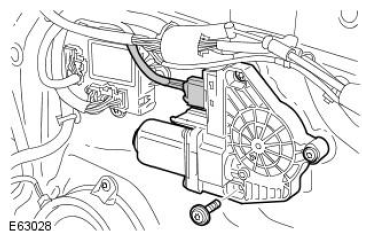

  3. G11524042

    Remove the window regulator motor.

    • Disconnect the electrical connector.
    • Remove the 3 Torx screws.

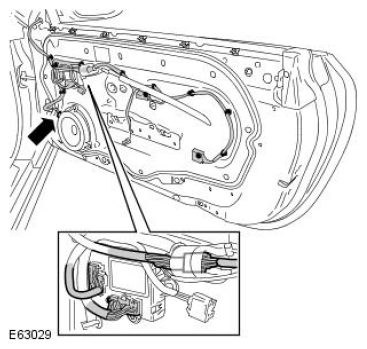

  4. G11524043

    Release the front door inner weathershield.

    • Disconnect the 3 electrical connectors.
    • Release the 9 wiring harness clips.

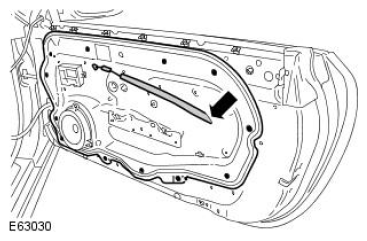

  5. G11524044

    Remove the front door inner weathershield.

    • Remove the 12 Torx bolts.
    • Release the front door interior handle cable.

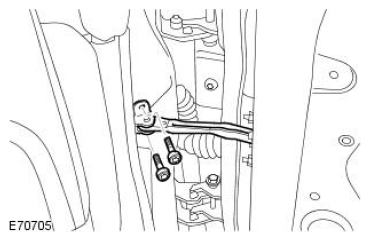

  6. G11524045

    Release the door check strap from the body.

    • Remove the 2 Torx screws.

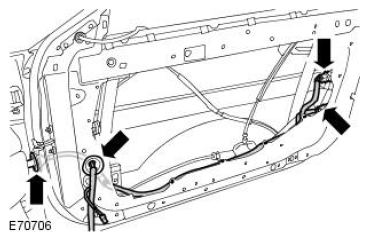

  7. G11524046

    Release the door harness from the door.

    • Release the 5 clips.
    • Disconnect the 2 electrical connectors.
    • Release from the locating grommet.
    8. NOTE: With assistance remove the component.

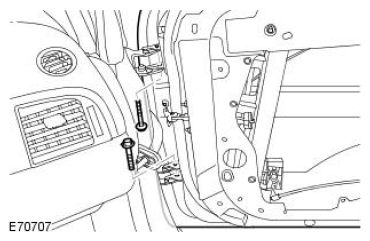

  8. G11524047

    Remove the door.

    • Remove the 2 hinge bolts.
