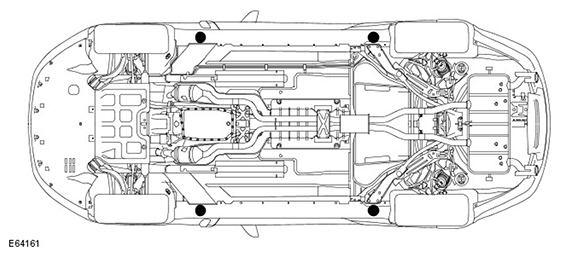

Lifting Points-Two-Post Lift

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Do not allow the hoist adapters to contact the steering linkage, suspension arms, stabilizer bar, rear subframe stabilizer brackets or to compress the lower suspension arm stabilizer bar insulator. Damage to the suspension, exhaust and steering linkage components may occur if care is not exercised when positioning the hoist adapters of two-post lift prior to lifting the vehicle.
  • Never use the rear axle as a lift point. Damage to the rear axle seals and bushes may occur.
  • When using a two-post lift, a cushioned pad must be utilized to avoid body damage.
G11503854
