Lifting Points-Floor Jack And Axle Stands

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • When using a floor jack, a cushioned pad must be utilized to avoid body damage.
  • When using axle stands, a cushioned pad must be utilized to avoid damage to the body.

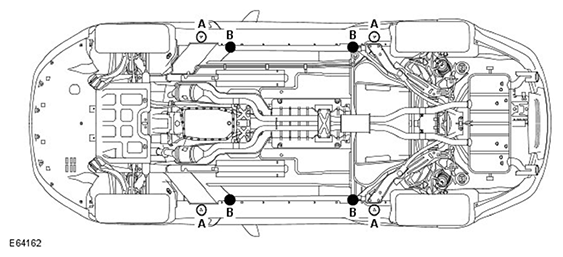

G11503855
ITEM DESCRIPTION
A Jacking point
B Axle stand positioning point
