Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Removal steps in this procedure may contain installation details.
  • Some variation in the illustrations may occur, but the essential information is always correct.

Coupe

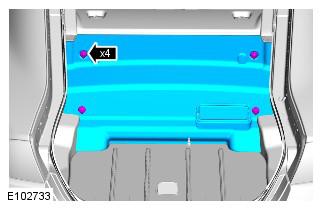

  1. See Figure
    G00566805

    Convertible

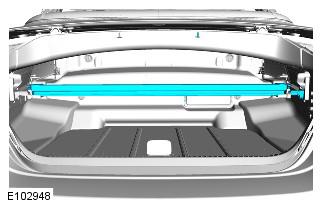

  2. See Figure
    G00566806

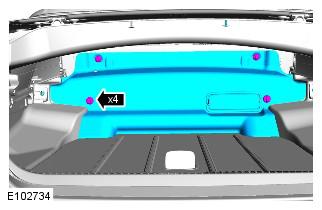

  3. See Figure
    G00566807

    All vehicles

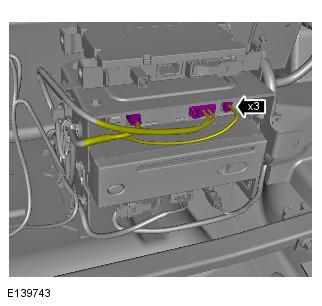

  4. See Figure
    G00566808
  5. See Figure
    G11516393

    Torque: 10 Nm
