Control Diagram - Standard Audio System (From 2009 My)

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: A = Hardwired; N = Medium speed CAN bus; P = MOST ring

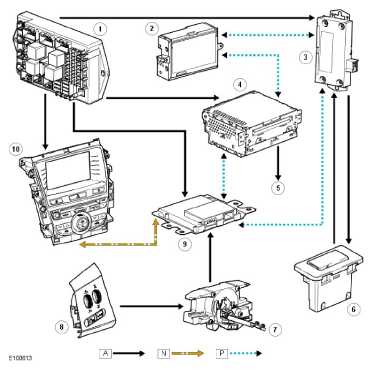

G11516378
ITEM DESCRIPTION
1 AJB
2 TSD
3 Auxiliary USB unit
4 Integrated audio module
5 To speakers
6 Auxiliary input panel
7 Clock spring
8 Remote audio switches
9 Information and entertainment module
10 Integrated control panel
