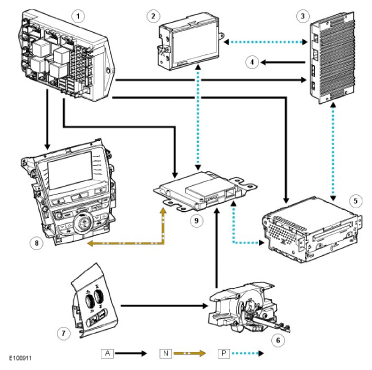

Control Diagram - Premium Audio System (Up To 2009 My)

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: A = Hardwired; N = Medium speed CAN bus; P = MOST ring

ITEM	DESCRIPTION
1	AJB
2	TSD
3	Audio amplifier
4	To speakers
5	Integrated audio module
6	Remote audio switches
7	Clock spring
8	Integrated control panel
9	Information and entertainment module
