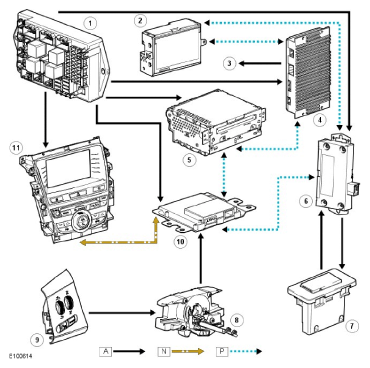

Control Diagram - Premium Audio System (From 2009 My)

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: A = Hardwired; N = Medium speed CAN bus; P = MOST ring
G11516380
ITEM DESCRIPTION
1 AJB
2 TSD
3 To speakers
4 Audio amplifier
5 Integrated audio module
6 Auxiliary USB unit
7 Auxiliary input panel
8 Clock spring
9 Remote audio switches
10 Information and entertainment module
11 Integrated control panel
