Component Location

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

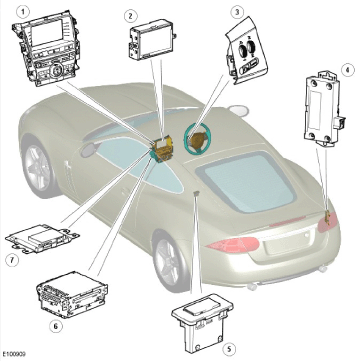

G11516373
ITEM DESCRIPTION
1 Integrated control panel
2 Touch Screen Display (TSD)
3 Remote audio switches
4 Auxiliary Universal Serial Bus (USB) unit (from 2009 Model Year (MY))
5 Auxiliary input panel (from 2009 MY)
6 Integrated audio module
7 Information and entertainment Module
