Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The component is situated in the passenger footwell. LHD is illustrated the procedure to remove the component on a RHD vehicle is similar.
  1. Remove the instrument panel assembly.

    For additional information, refer to: Instrument Panel

  2. See Figure
    GJ0009327

    Remove the heater duct.

    • Remove the 2 Torx screws.
    • Release the lampholder.
    3. CAUTION: Make sure the wiring harness and electrical connectors are not damaged during the carpet release.
  3. Carefully release the carpet for access.
  4. See Figure
    GJ0009328

    Remove the subwoofer cover.

    • Remove the 4 bolts.
    5. CAUTION: Cover fibre optic cable connectors to minimize dust ingress and avoid bending the cables in a radius of less than 30 mm.
  5. Disconnect the 2 electrical connectors.
    • Carefully disconnect the MOST connector.

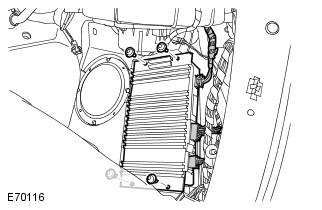

  6. See Figure
    G00566804

    Remove the amplifier.

    • Remove the 4 Torx screws.
