Full Load Breather
WARNING: This page is about a different car, the 2015 Jaguar XK, 2014 Jaguar XK, 2013 Jaguar XK, and 2012 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.

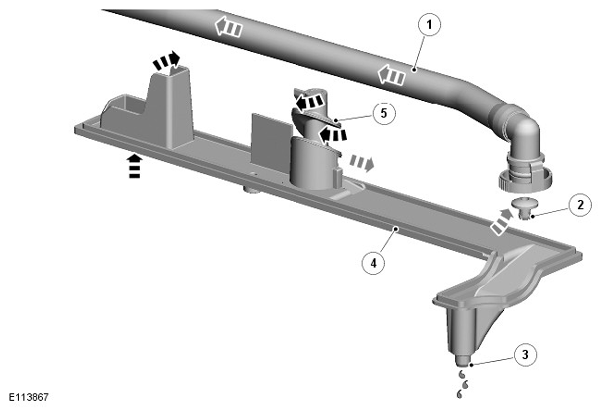

| ITEM | DESCRIPTION |
|---|---|
| 1 | Flexible hose |
| 2 | Two-way valve |
| 3 | Oil drain |
| 4 | Baffle plate |
| 5 | Oil separator |
The full load breather consists of an oil separator, a two-way valve and a flexible hose. The oil separator and the two-way valve are installed in the top of the LH (left-hand) cylinder head cover. The flexible hose connects the LH cylinder head cover to the LH air duct of the intake air distribution and filtering system.
The oil separator is installed in a channel in the top of the cylinder head cover. A baffle plate, which incorporates a gas inlet and an oil drain, is installed over the channel. The two-way valve is installed in the gas outlet from the channel. The two-way valve prevents reverse flow into the cylinder head cover when there is minimal depression in the air duct.
