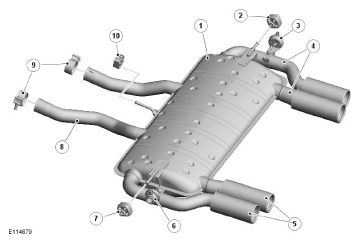

| ITEM | DESCRIPTION |
|---|---|
| 1 | Rear muffler |
| 2 | Mounting rubber |
| 3 | Exhaust valve |
| 4 | Outlet pipes |
| 5 | Finishers |
| 6 | Exhaust valve |
| 7 | Mounting rubber |
| 8 | Inlet pipe |
| 9 | Center to rear section joint clamps |
| 10 | Mounting rubber |
The rear section has two inlet pipes and four outlet pipes welded to a muffler. A stiffener plate is welded between each pair of outlet pipes. A polished stainless steel finisher is installed on each of the outlet pipes. Three suspension rubbers connect hangers on the muffler to hangers and a bracket on the underside of the body.
The muffler consists of upper and lower shells, which contain perforated inlet and inner pipes supported in five baffle plates. An exhaust valve is installed in the outboard outlet pipe on each side of the muffler. The exhaust valves are part of the active exhaust system.
