Supercharger Vehicles Except XKR-S2
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

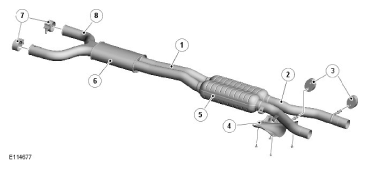

| ITEM | DESCRIPTION |
|---|---|
| 1 | Intermediate pipe |
| 2 | Outlet pipe |
| 3 | Mounting rubbers |
| 4 | Air deflector shield |
| 5 | Center muffler |
| 6 | Front muffler |
| 7 | Front to center section joint clamps |
| 8 | Inlet pipe |
The center section has two inlet, intermediate and outlet pipes, and two mufflers all welded together. Two plates are welded between the inlet pipes at the front of the center section. Two suspension rubbers connect hangers on the outlet pipes to hangers on the underside of the body.
An air deflector shield is attached to four brackets on the outlet pipes. The air deflector shield directs cooling air on to the electronic differential at high vehicle speeds.
The front muffler consists of an outer case and two end plates, which contain two perforated tubes and a baffle plate. The center muffler consists of upper and lower shells, which contain perforated pipes, installed inside over-pipes, and three baffle plates.
