Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Battery Disconnect and Connect
  2. Refer to: Transmission Control Switch (TCS)
  3. G11541901
  4. G11541902
  5. G11541903

    Torque Specification: 5 Nm

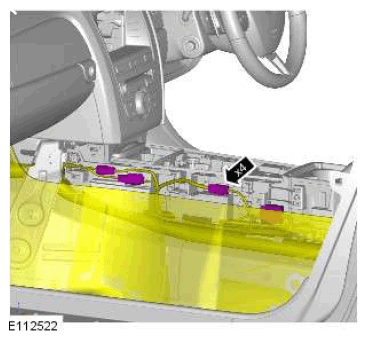

  6. G11524411

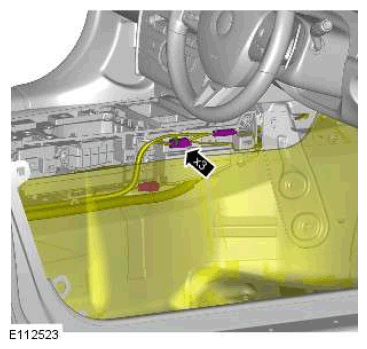

  7. G11524412
  8. G11541904

    Torque Specification: 3 Nm

  9. G11541905

    Torque Specification: 2 Nm

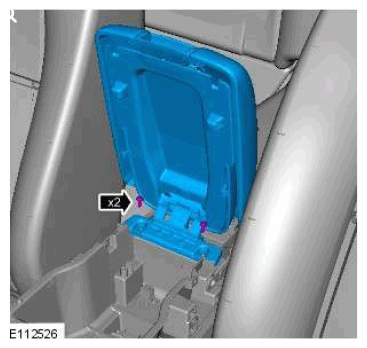

  10. G11524415

    Torque Specification: 5 Nm

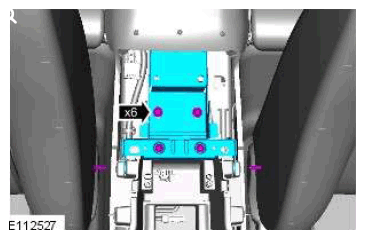

  11. G11524416

    Torque Specification: 5 Nm

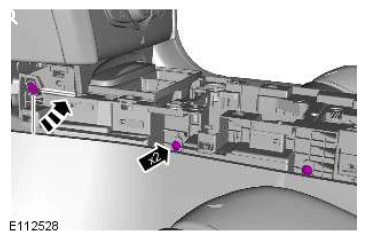

  12. G11524417

    Torque Specification: 2 Nm

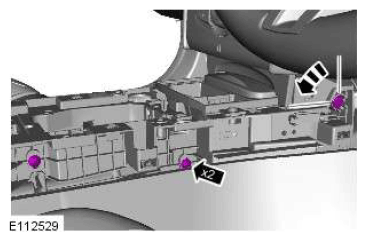

  13. G11524418

    Torque Specification: 2 Nm

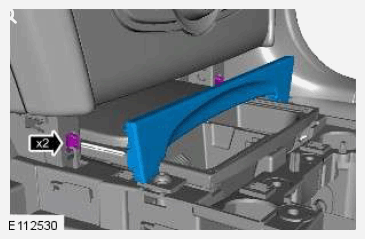

  14. G11524419

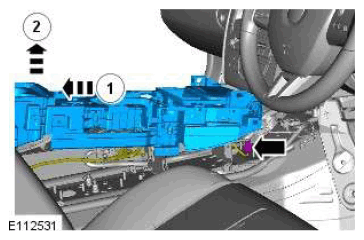

  15. G11524420
  16. NOTE: Do not disassemble further if the component is removed for access only.

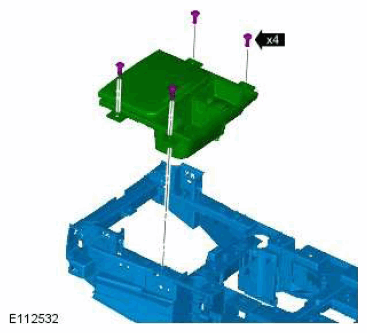

    G11524421

    Torque Specification: 3 Nm
