Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
    WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

  1. Raise and support the vehicle.

  2. Remove the LH rear wheel and tire.

    For additional information, refer to: Wheel and Tire

    3. CAUTION: Brake fluid will damage paint finished surfaces. If spilled, immediately remove the fluid and clean the area with water.
    NOTE:
    • Some fluid spillage is inevitable during this operation.
    • Note the fitted position.

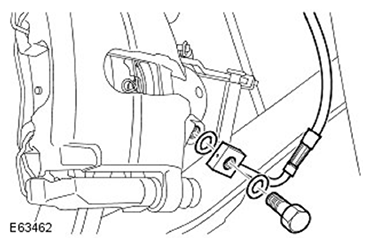

  3. G11504215

    Disconnect the brake hose from the brake caliper.

    • Using the special tool, press and hold the brake pedal.
    • Remove and discard the two sealing washers.

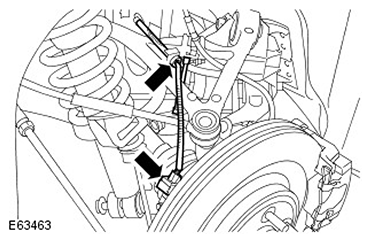

  4. G11504216

    Release the rear wheel speed sensor lead.

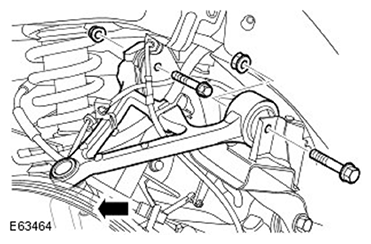

  5. G11504217

    Remove the LH upper arm.

    • LH rear: Remove the upper arm 2 nuts and bolts.
    • Remove and discard the nut.
