Removal And Installation: Removal

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
    WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

  1. Raise and support the vehicle.

  2. Remove the LH rear wheel and tire.

    For additional information, refer to: Wheel and Tire

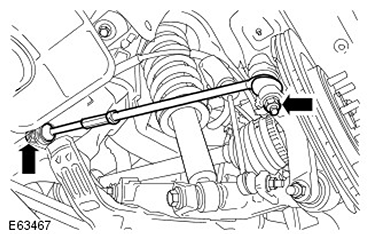

  3. NOTE: Use an additional wrench to prevent the ball joint rotating.
    G11504212

    Remove the tie rod.

    • Remove and discard the 2 tie-rod end retaining nuts.
