Removal And Installation: Installation
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

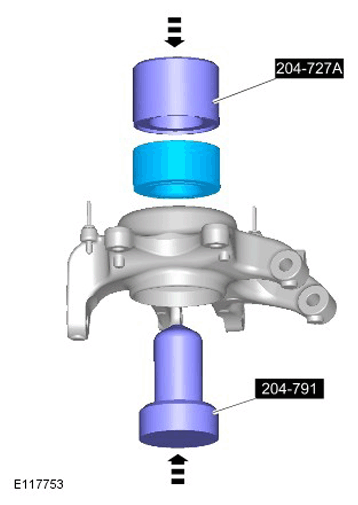

Special Tool(s): 204-727A, 204-791

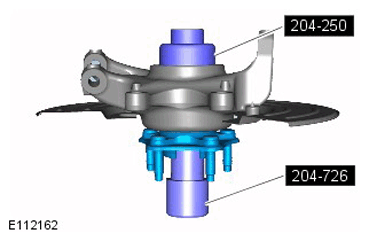

Special Tool(s): 204-726, 204-250
Torque Specification: 96 Nm
Torque Specification: 190 Nm
Torque Specification: 63 Nm
Torque Specification: 6 Nm
Torque Specification: 103 Nm
Torque Specification:
Stage 1: 150 Nm
Stage 2: Loosen: 1/4 turn(s)
Stage 3: 80 Nm
Stage 4: 60°
- Refer to: Wheel and Tire
NOTE:

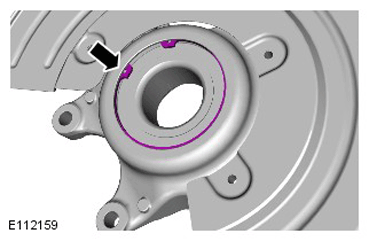

Make sure correct alignment of the bearing is maintained when installing into the hub carrier.
NOTE:
Make sure the correct alignment of the drive flange is maintained when installing into the hub carrier and bearing assembly.
CAUTION:
The final tightening of the suspension components must be carried out with the vehicle on its wheels.
CAUTION:
Install the halfshaft nut finger tight.
NOTE:
The wheel hub nut is not tightened at this stage.
CAUTION:
The final tightening of the suspension components must be carried out with the vehicle on its wheels.
CAUTION:
The final tightening of the suspension components must be carried out with the vehicle on its wheels.
CAUTION:
Do not use air tools to install the nut. Failure to follow this instruction may result in damage to the component.
