Removal And Installation: Installation

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2015 Jaguar XKR-S, 2015 Jaguar XKR, 2015 Jaguar XK, 2014 Jaguar XKR-S, and 2014 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

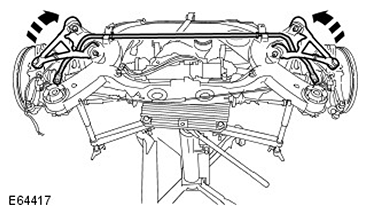

With assistance, install the rear stabilizer bar.

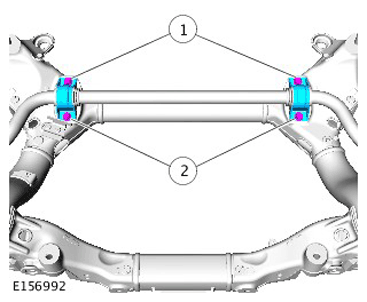

During installation tighten the bolts in the following sequence.
- Bolt 1: 55 Nm.
- Bolt 2: 55 Nm.
- Bolt 1: 55 Nm.

NOTE: Use an additional wrench to prevent the component from rotating.

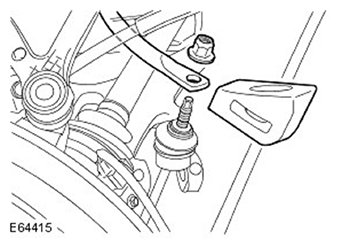

Install the stabilizer bar links.
- Install the bump stops.
- Tighten to 48 Nm.

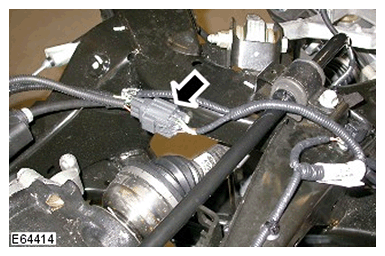

Connect the electronic parking brake actuator electrical connector.
- Secure the electrical connector.

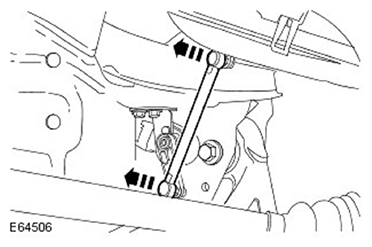

Install the height sensor link.

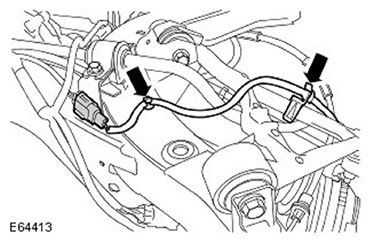

Connect the LH rear ABS sensor.
- Connect the electrical connector.
- Carefully secure the clips.
- Repeat the above procedure for the other side.
Install the rear subframe.
For additional information, refer to: Rear Subframe - V8 5.0L Petrol/V8 S/C 5.0L Petrol
